The specs.
Every dimension, every tolerance, every load rating — written down. No marketing math.

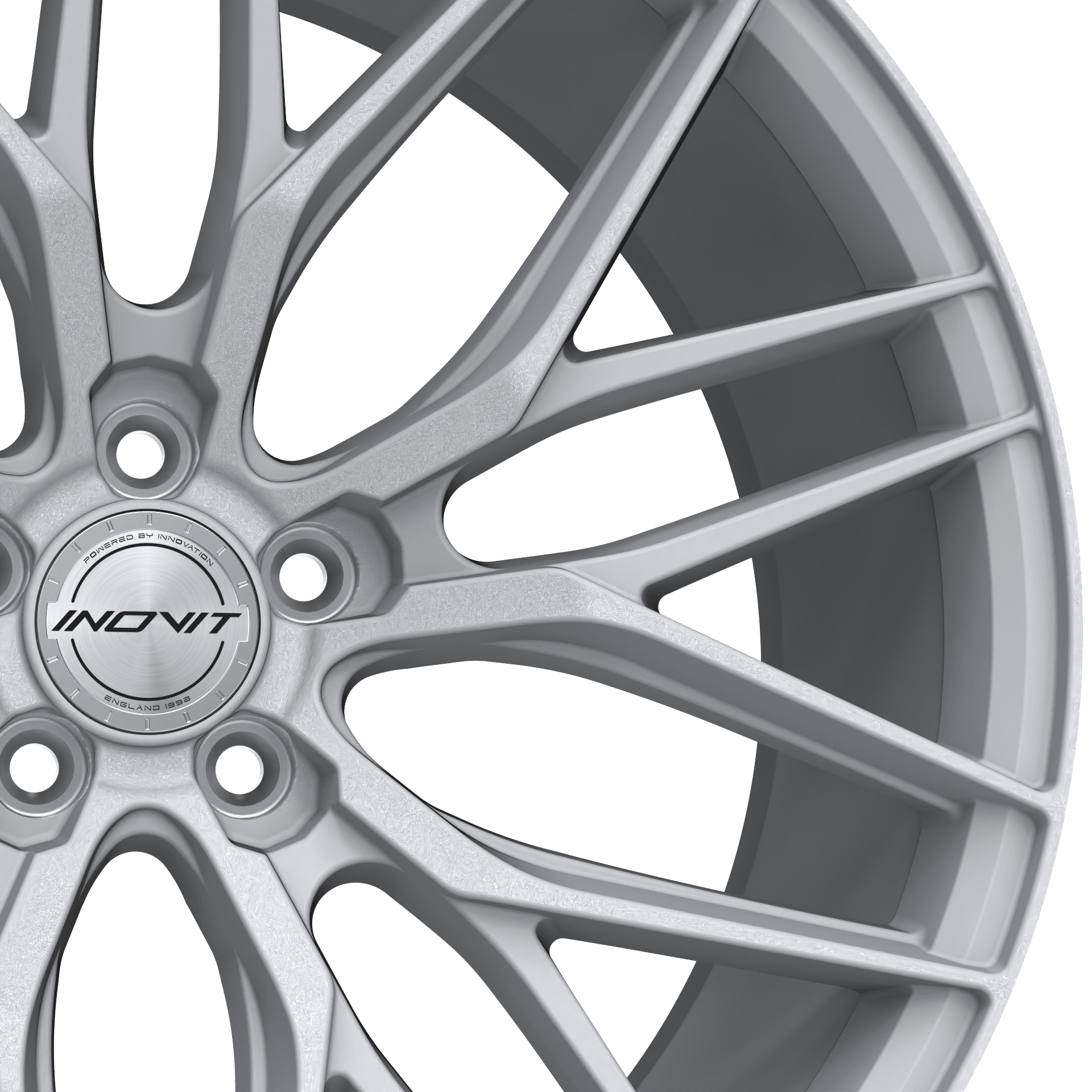

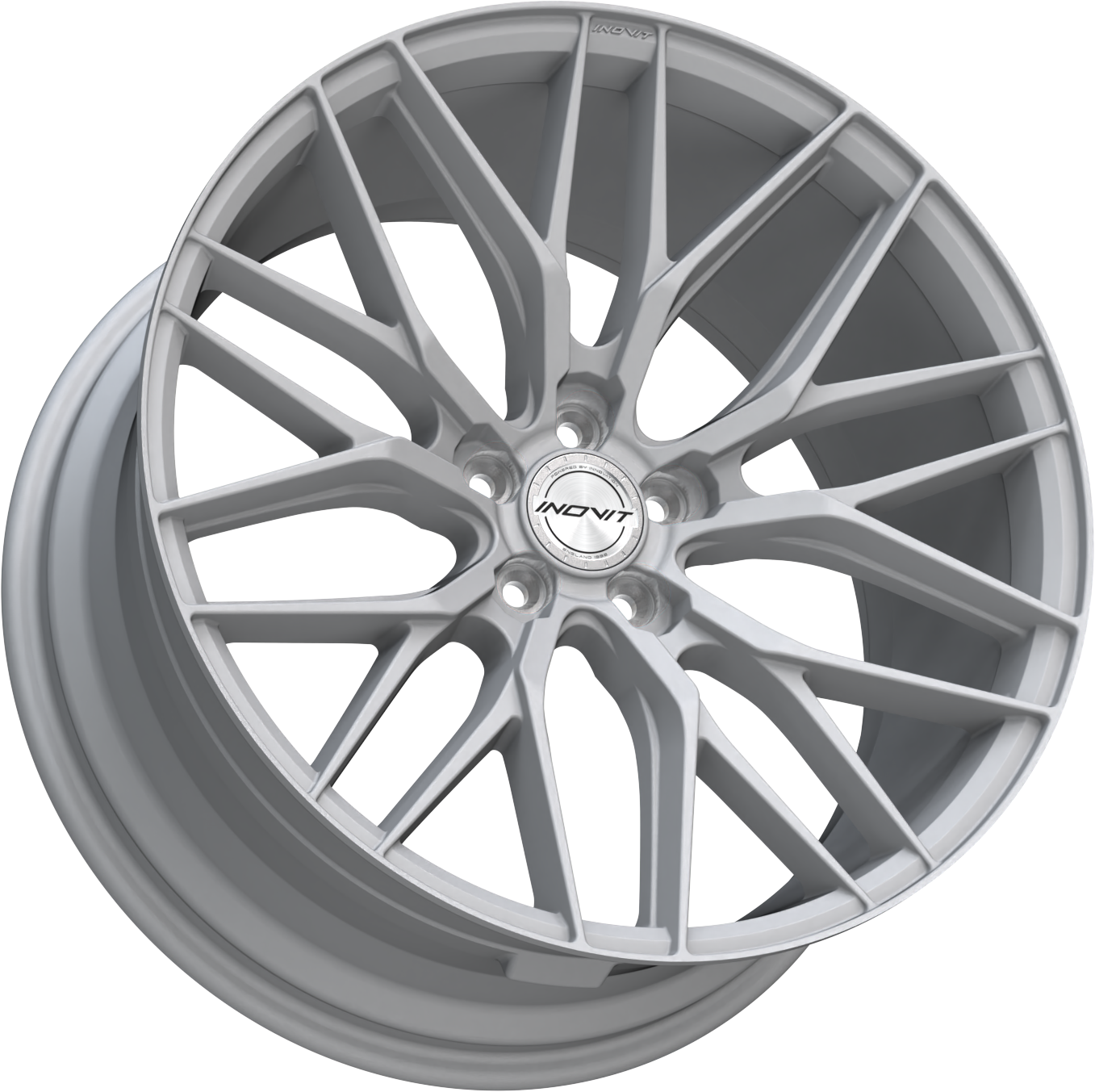

⌀ 20"WIDTH 8.5"The Wheel Cap. Where it begins.
Every INOVIT wheel is finished with an integrated wheel cap — engineered as part of the spoke architecture, not bolted on. Custom INOVIT branding sits flush at center, machined to the same tolerances as the wheel face, so the geometry reads as one continuous piece from any angle.

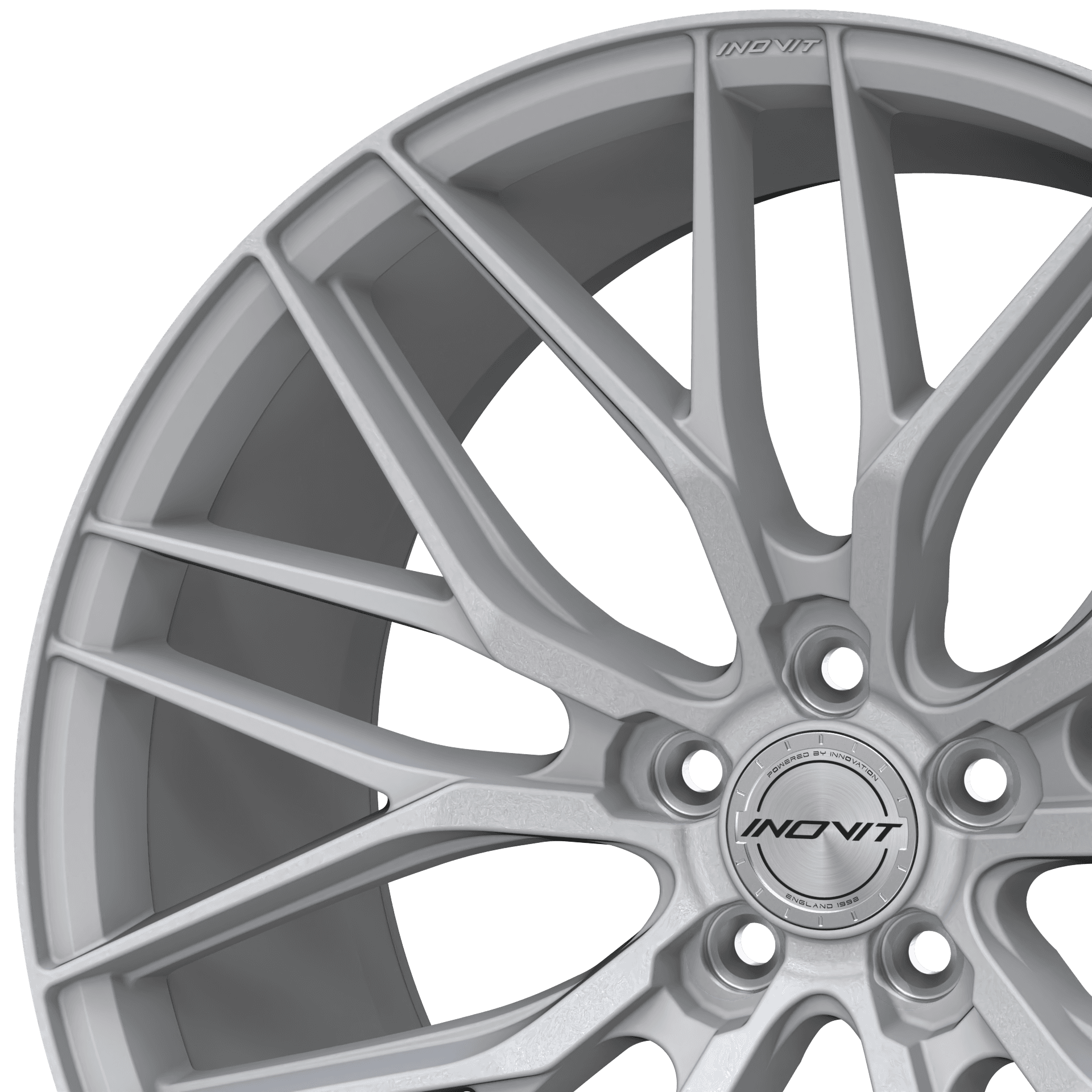

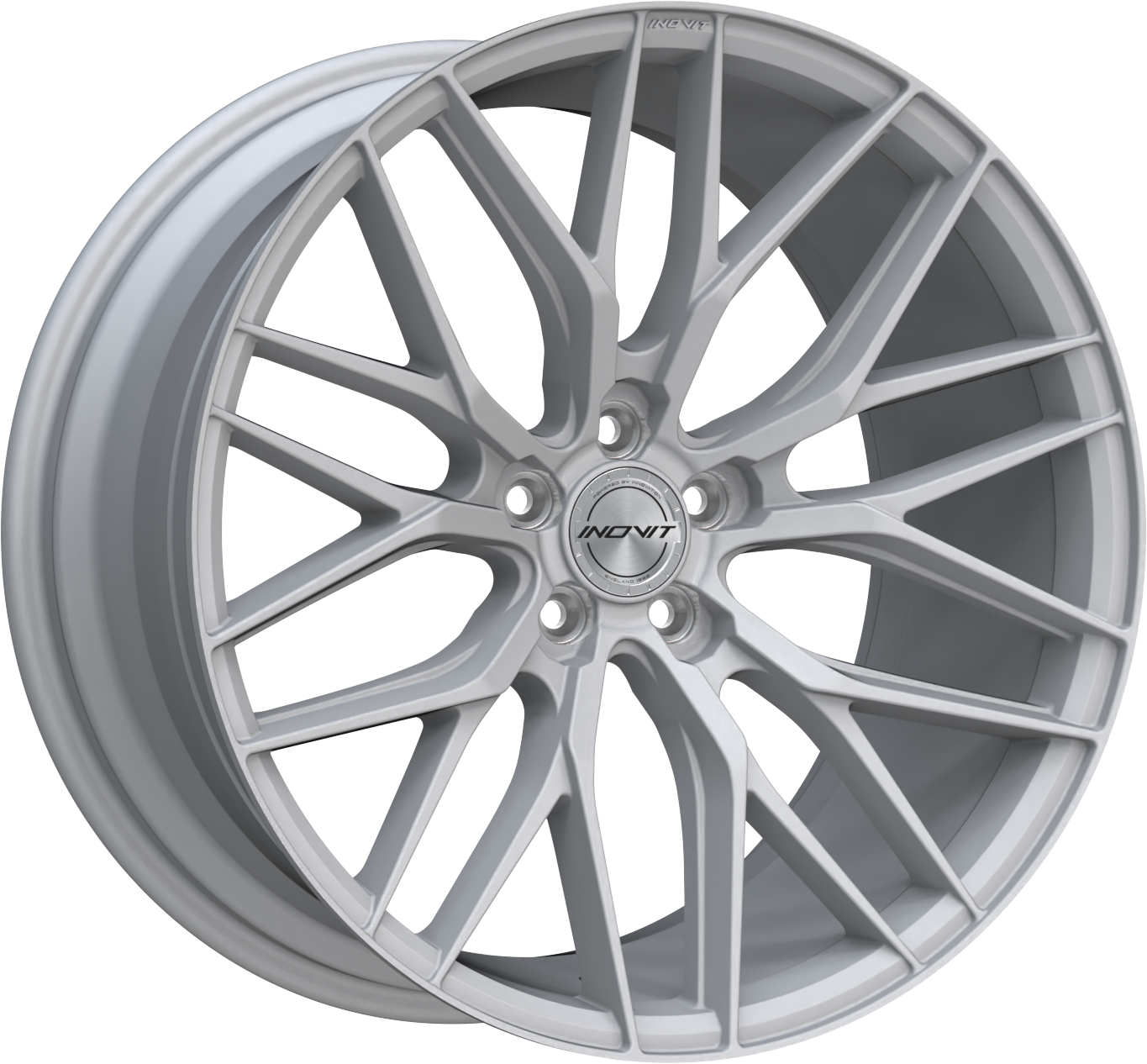

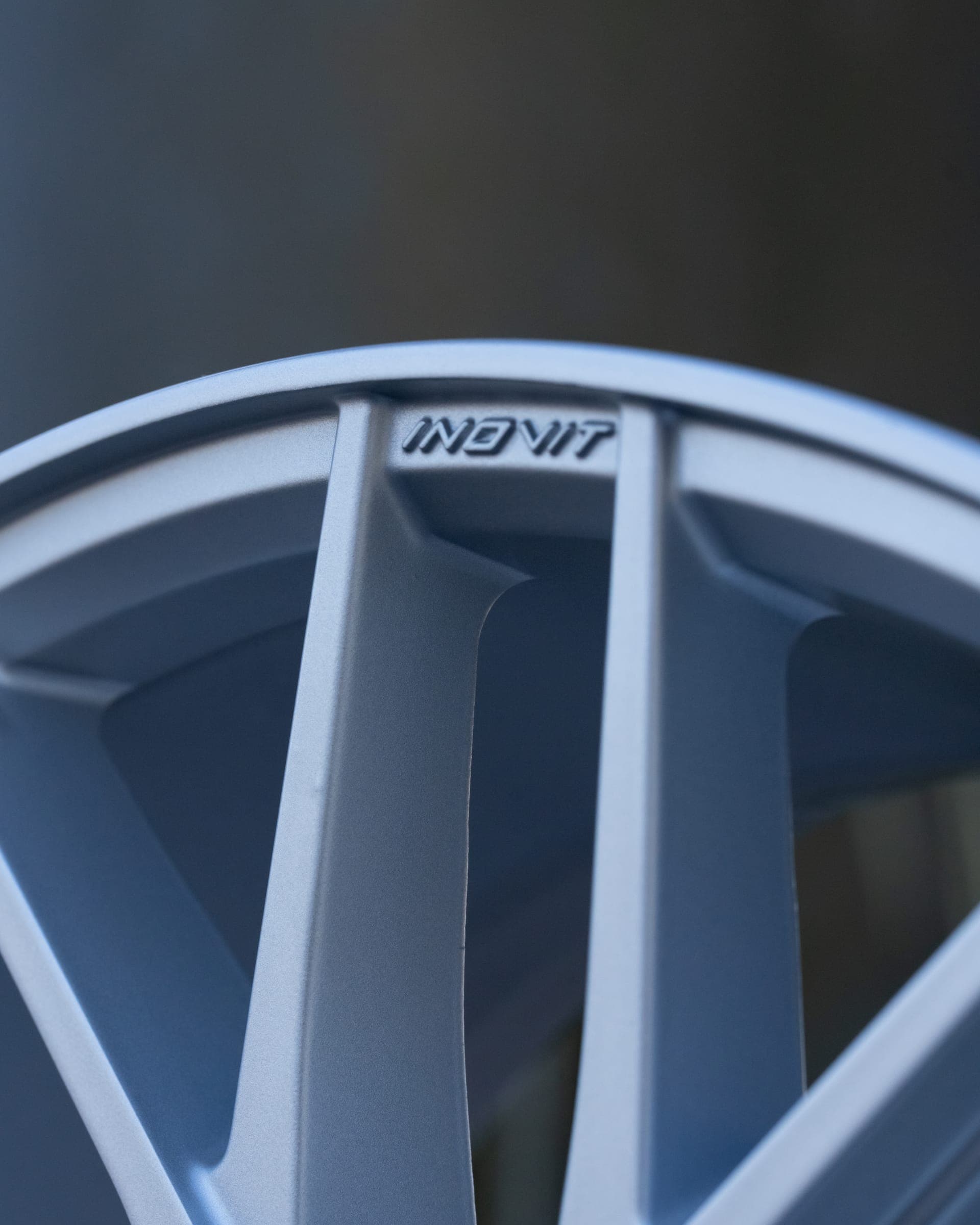

The Face. Geometry as identity.
Spoke profiles are milled in 5-axis CNC, contoured to catch light from every approach angle. Machined faces reveal the alloy beneath; satin lacquer locks in the finish for years of road exposure without dulling, fading, or losing its mechanical edge.

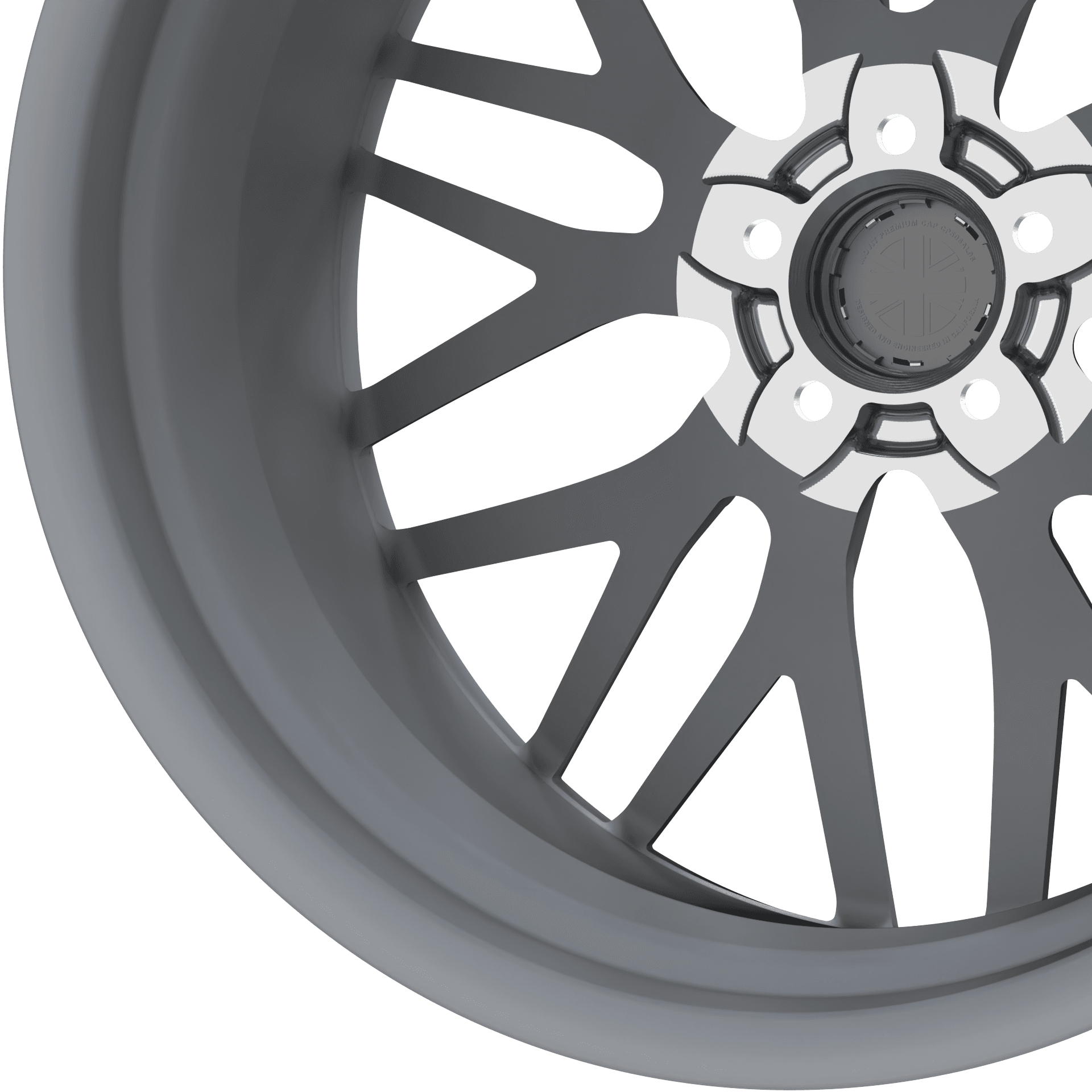

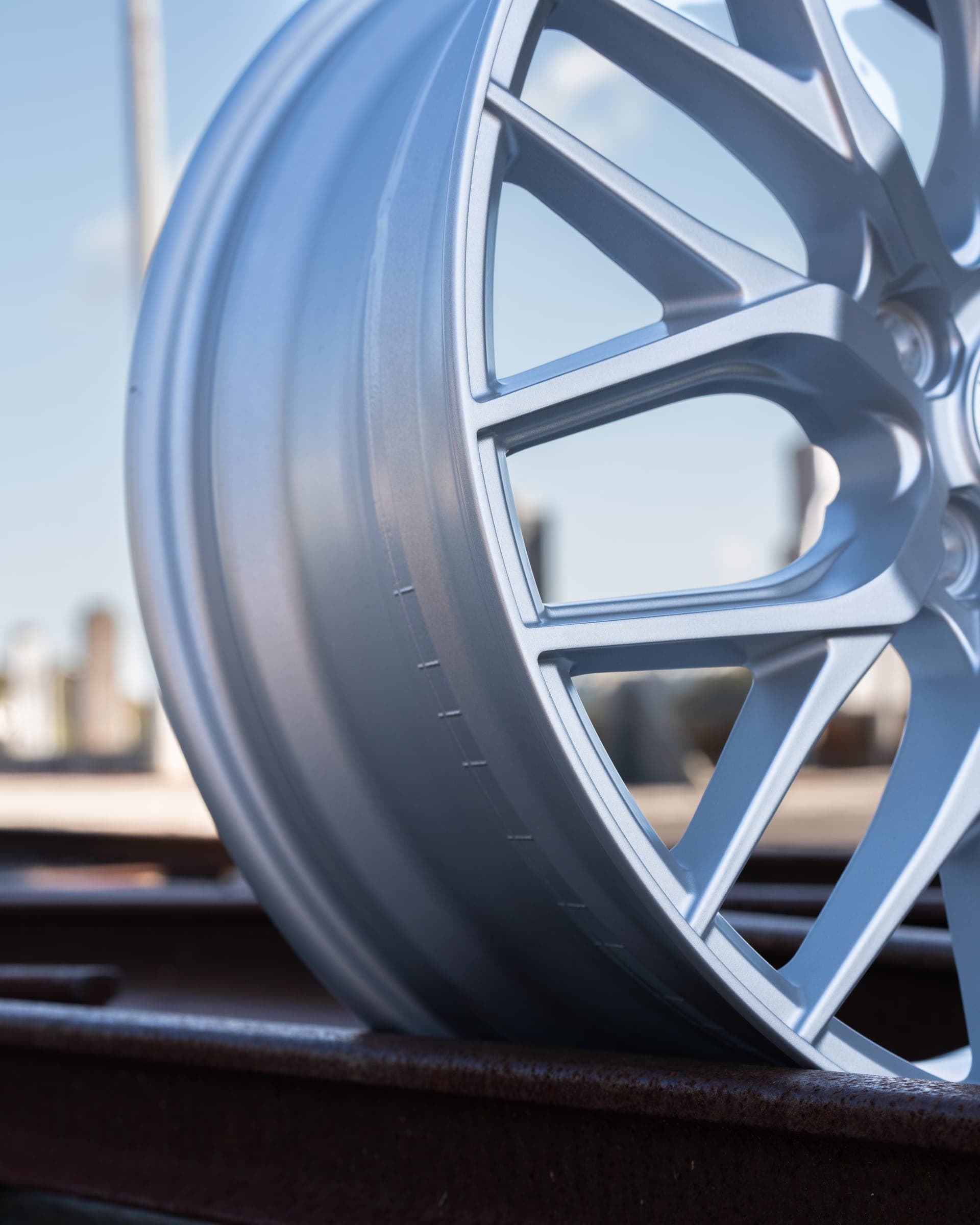

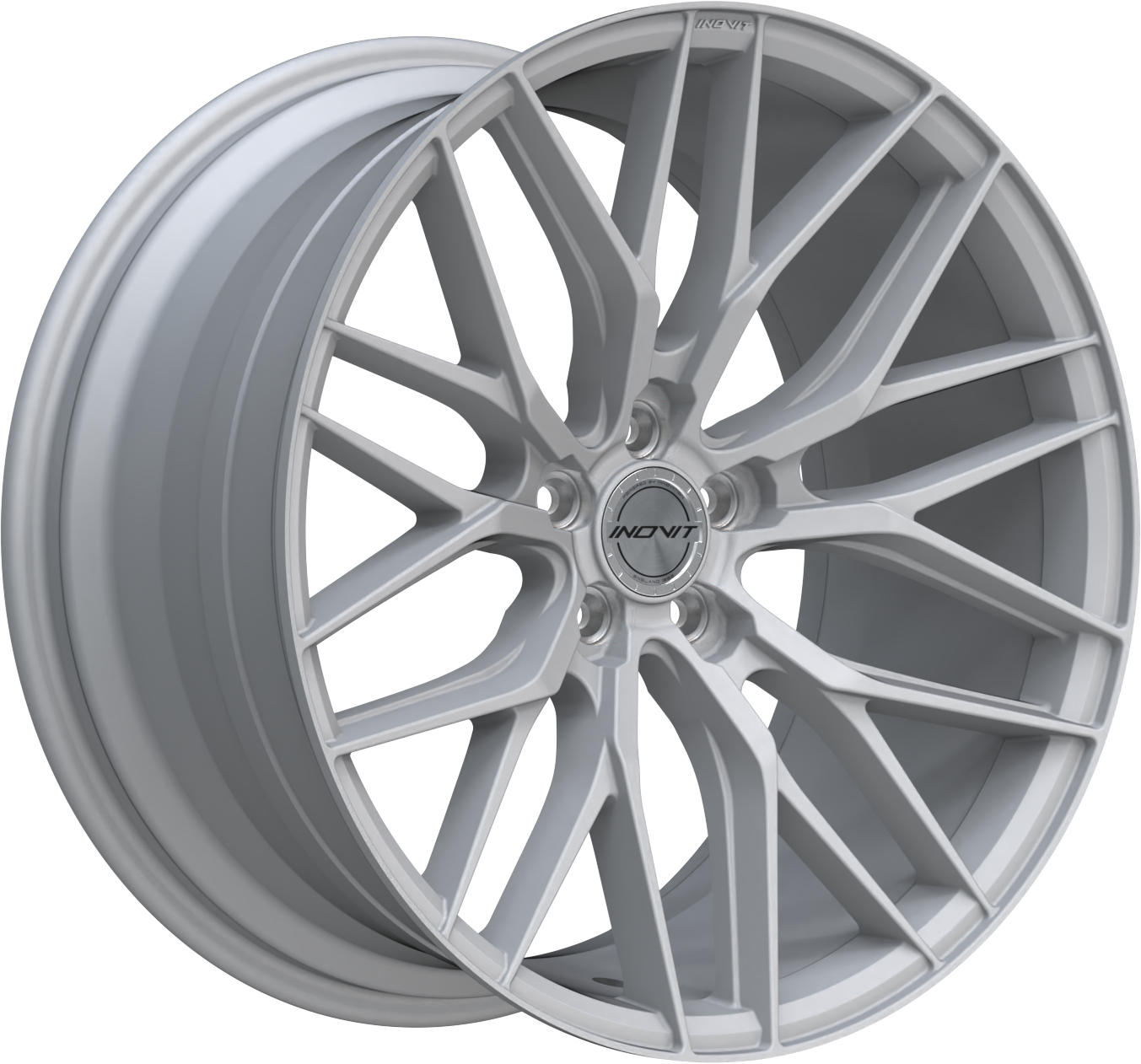

The Edge. Strength on display.
The outer barrel is rolled and heat-treated for impact resistance, then turned to a knife-edge lip that frames the spoke pattern. JWL- and VIA-certified for daily load — engineered to outlast the car around it without flinching at potholes, kerbs, or track laps.

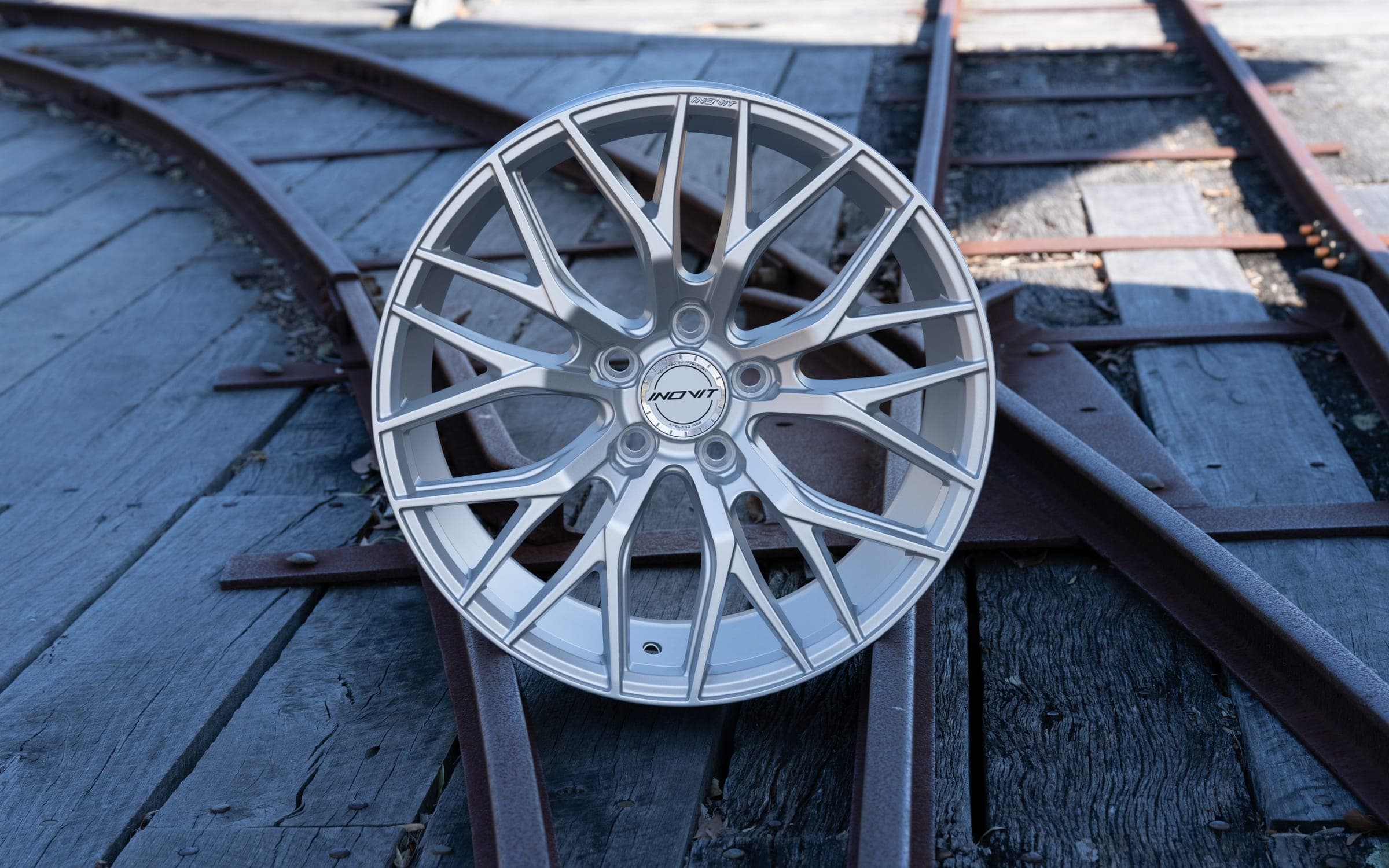

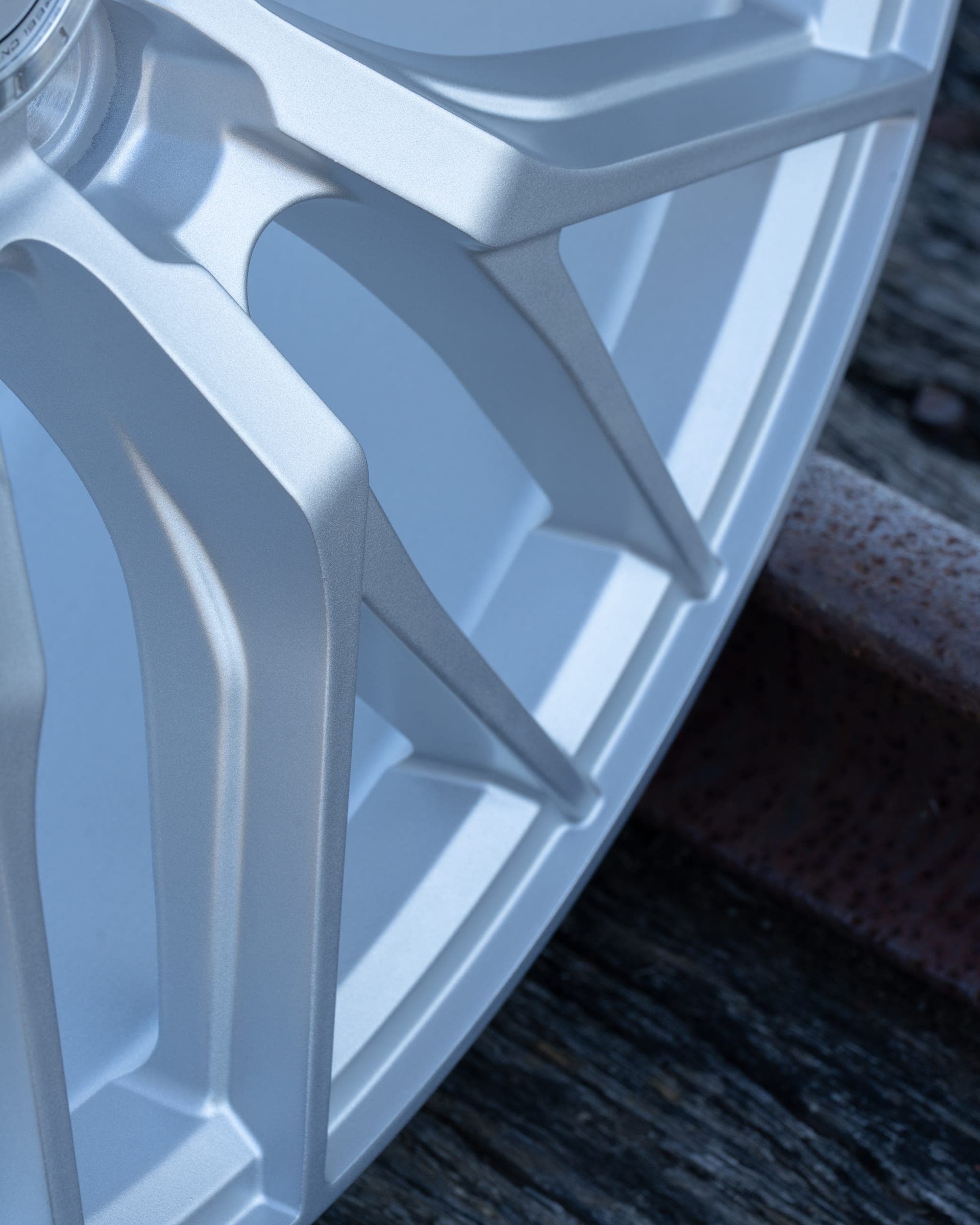

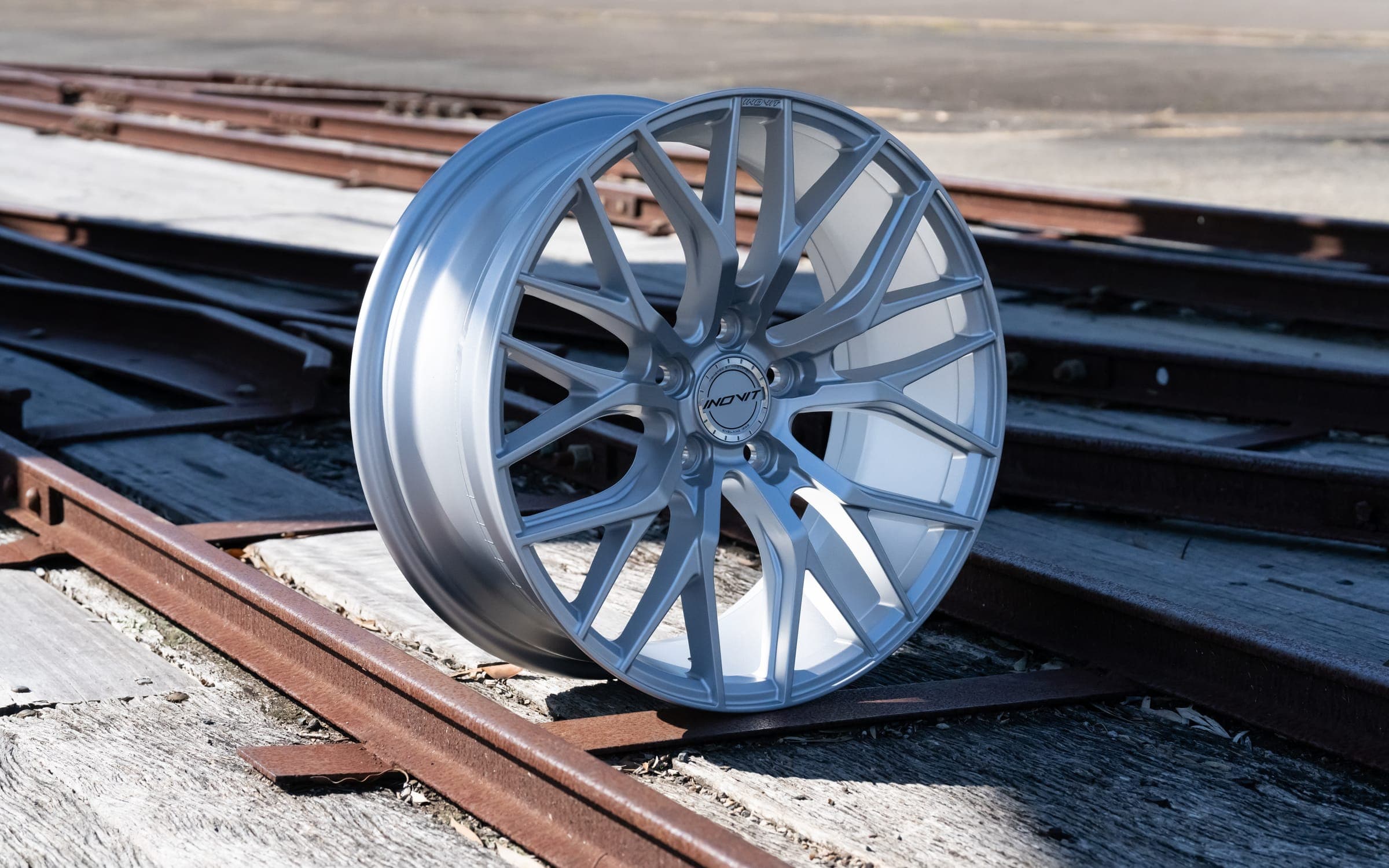

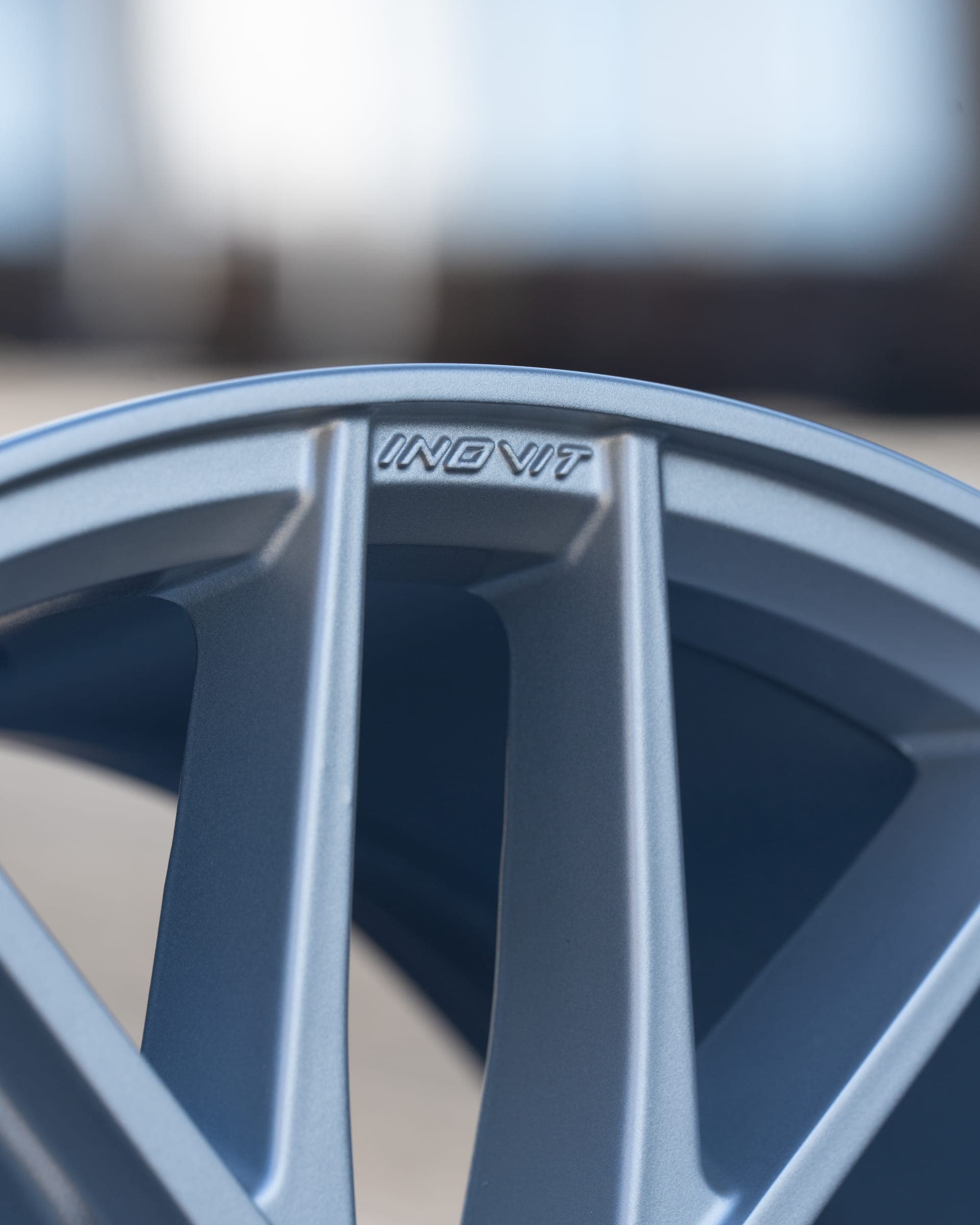

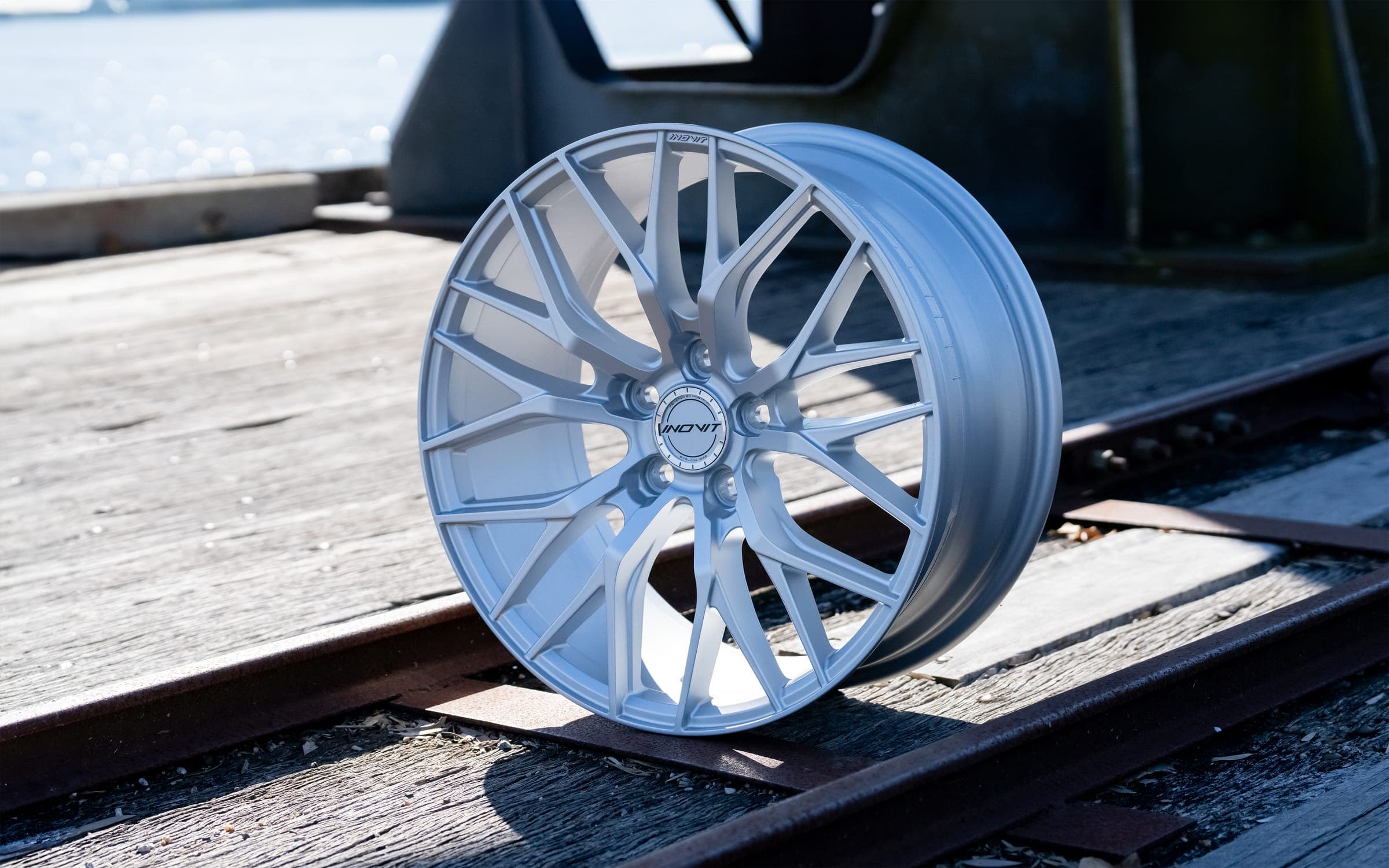

Photo gallery.
Studio plates · finish details · in-context shots.
Forged. Not folded.
Cast. Refined.
INOVIT Monoblock Cast wheels are gravity-cast in a single piece from aerospace-grade aluminium, then CNC-finished and finish-treated to OEM-grade tolerances. Lighter than steel, more affordable than forged — engineered for daily reliability and timeless aesthetic.
Process · Monoblock CastImage 04/11Fitment table.
Every size, every bolt pattern. Find your fit.
| Diameter | Width | Holes | PCD | ET | C/B | Cap | Bolt Pattern | Load Rating | |
|---|---|---|---|---|---|---|---|---|---|
| BLITZ | 18 | 8 | 5 | 108 | 40 | 73.1 | CP506AL68 | 32x15x60° | 690kg / 1,520 lbs |
| BLITZ | 18 | 8 | 5 | 112-114.3 | 40 | 73.1 | CP506AL68 | 32x15x60° | 690kg / 1,520 lbs |
| BLITZ | 18 | 8 | 5 | 120 | 35 | 72.6 | CP506AL68 | 32x15x60° | 690kg / 1,520 lbs |
| BLITZ | 18 | 8 | 5 | 120 | 38 | 72.6 | CP506AL68 | 32x15x60° | 690kg / 1,520 lbs |
| BLITZ | 19 | 8.5 | 5 | 112-114.3 | 32 | 73.1 | CP506AL68 | 32x15x60° | 690kg / 1,520 lbs |
| BLITZ | 19 | 8.5 | 5 | 112-114.3 | 40 | 73.1 | CP506AL68 | 32x15x60° | 690kg / 1,520 lbs |
| BLITZ | 19 | 8.5 | 5 | 112-114.3 | 38 | 73.1 | CP506AL68 | 32x15x60° | 690kg / 1,520 lbs |
| BLITZ | 19 | 8.5 | 5 | 114.3 | 35 | 73.1 | CP506AL68 | 32x15x60° | 690kg / 1,520 lbs |
| BLITZ | 19 | 8.5 | 5 | 120 | 33 | 72.6 | CP506AL68 | 32x15x60° | 690kg / 1,520 lbs |
| BLITZ | 19 | 9.5 | 5 | 112-114.3 | 38 | 73.1 | CP506AL68 | 32x15x60° | 690kg / 1,520 lbs |
| BLITZ | 19 | 9.5 | 5 | 114.3 | 40 | 73.1 | CP506AL68 | 32x15x60° | 690kg / 1,520 lbs |
| BLITZ | 19 | 9.5 | 5 | 120 | 38 | 72.6 | CP506AL68 | 32x15x60° | 690kg / 1,520 lbs |
| BLITZ | 20 | 8.5 | 5 | 112-114.3 | 32 | 73.1 | CP506AL68 | 32x15x60° | 690kg / 1,520 lbs |
| BLITZ | 20 | 8.5 | 5 | 112-114.3 | 38 | 73.1 | CP506AL68 | 32x15x60° | 690kg / 1,520 lbs |
| BLITZ | 20 | 8.5 | 5 | 120 | 32 | 72.6 | CP506AL68 | 32x15x60° | 690kg / 1,520 lbs |
| BLITZ | 20 | 10 | 5 | 112-114.3 | 40 | 73.1 | CP506AL68 | 32x15x60° | 690kg / 1,520 lbs |
| BLITZ | 20 | 10 | 5 | 112-114.3 | 38 | 73.1 | CP506AL68 | 32x15x60° | 690kg / 1,520 lbs |
| BLITZ | 20 | 10 | 5 | 120 | 40 | 72.6 | CP506AL68 | 32x15x60° | 690kg / 1,520 lbs |
| BLITZ | 20 | 10 | 5 | 120 | 38 | 72.6 | CP506AL68 | 32x15x60° | 690kg / 1,520 lbs |
All dimensions in inches unless noted. PCD & C/B in mm. Don't see your fit? Talk to an engineer →

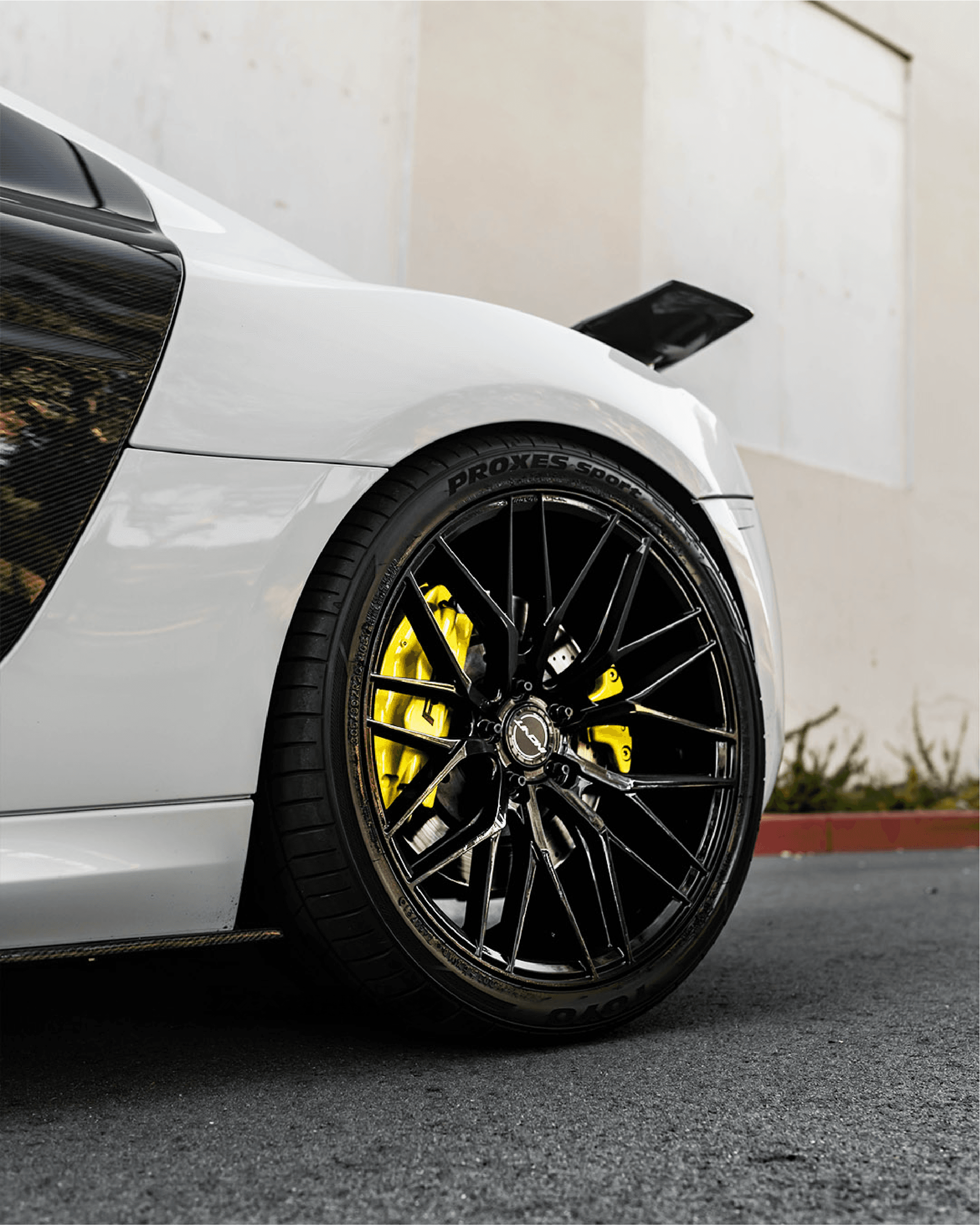

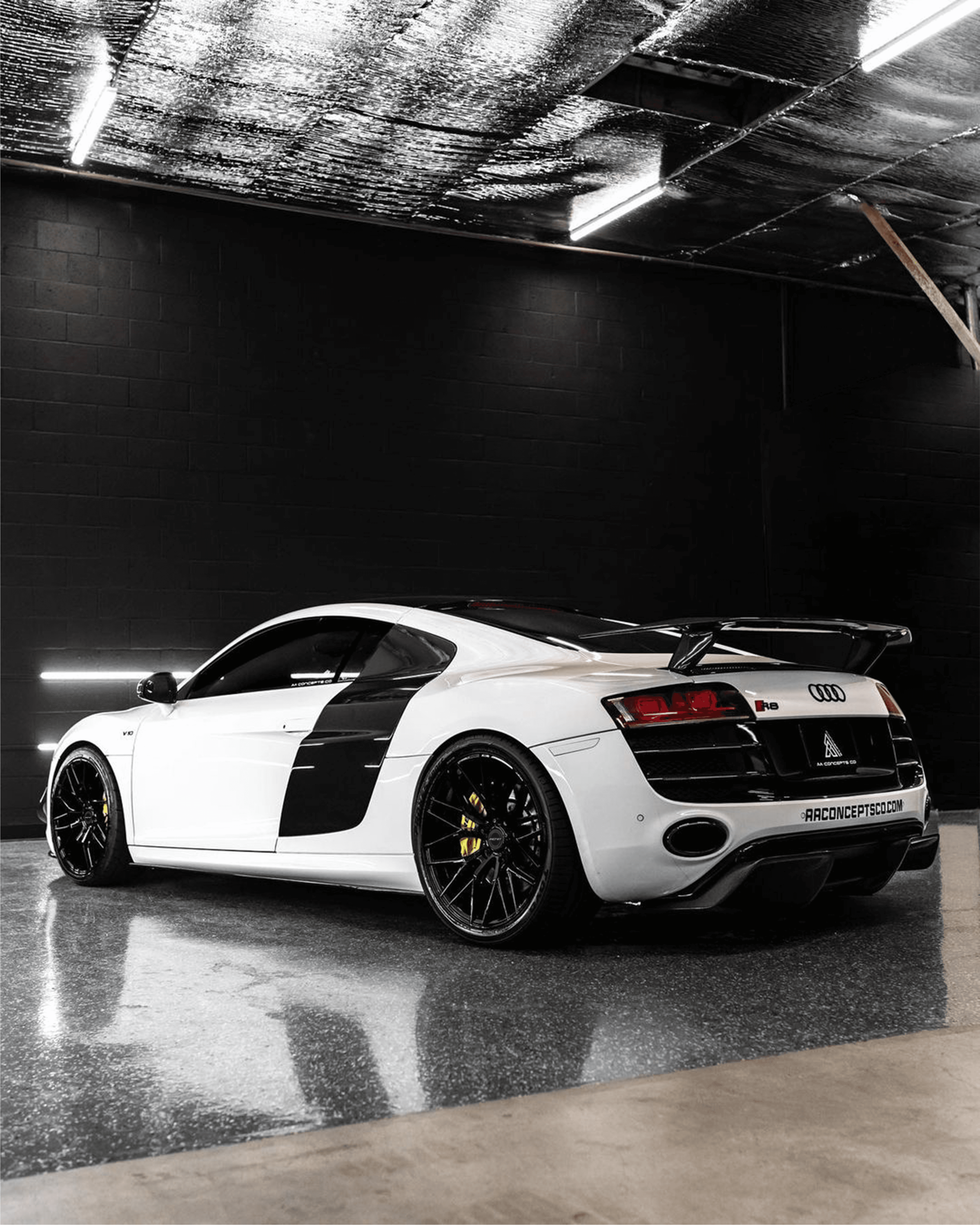

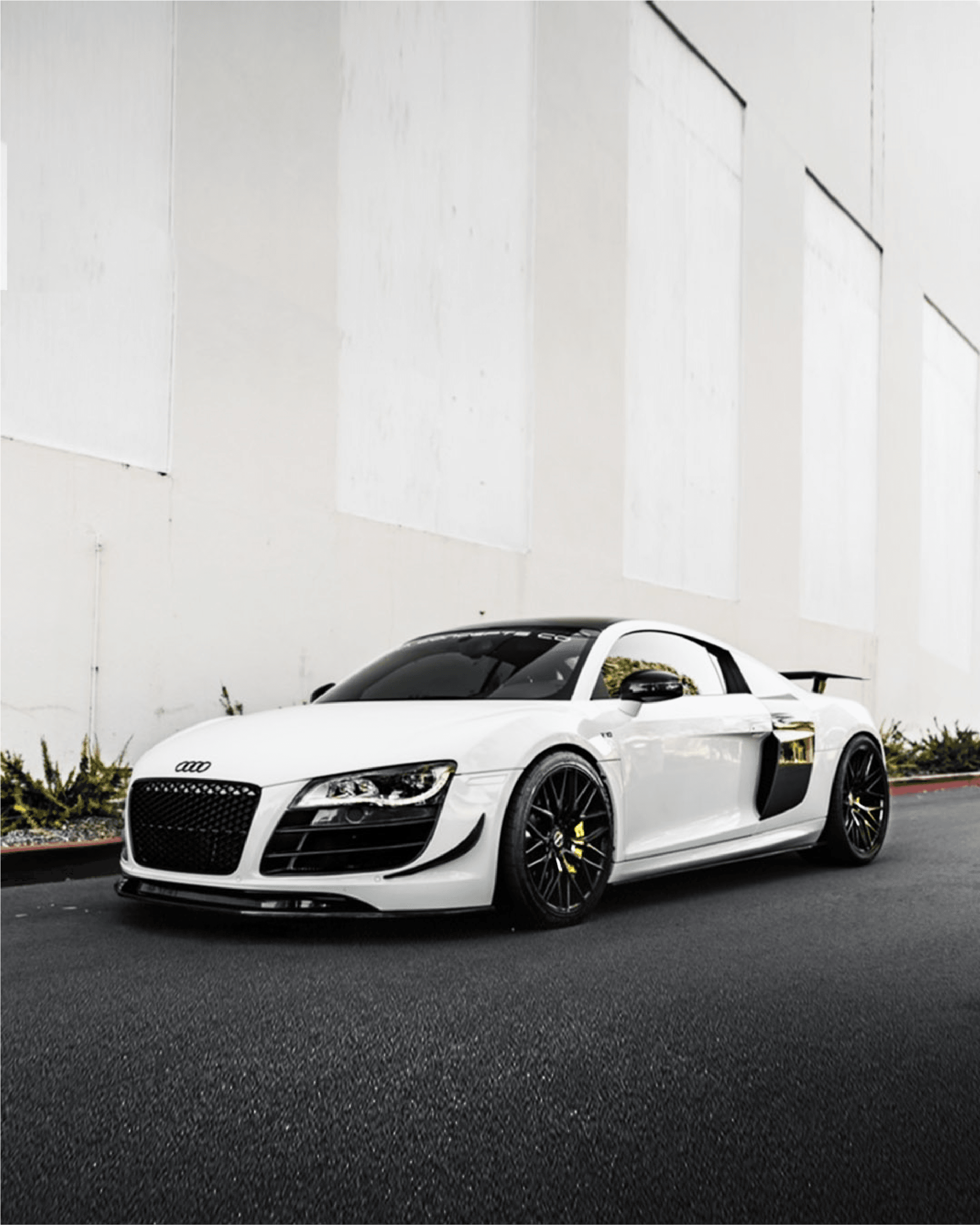

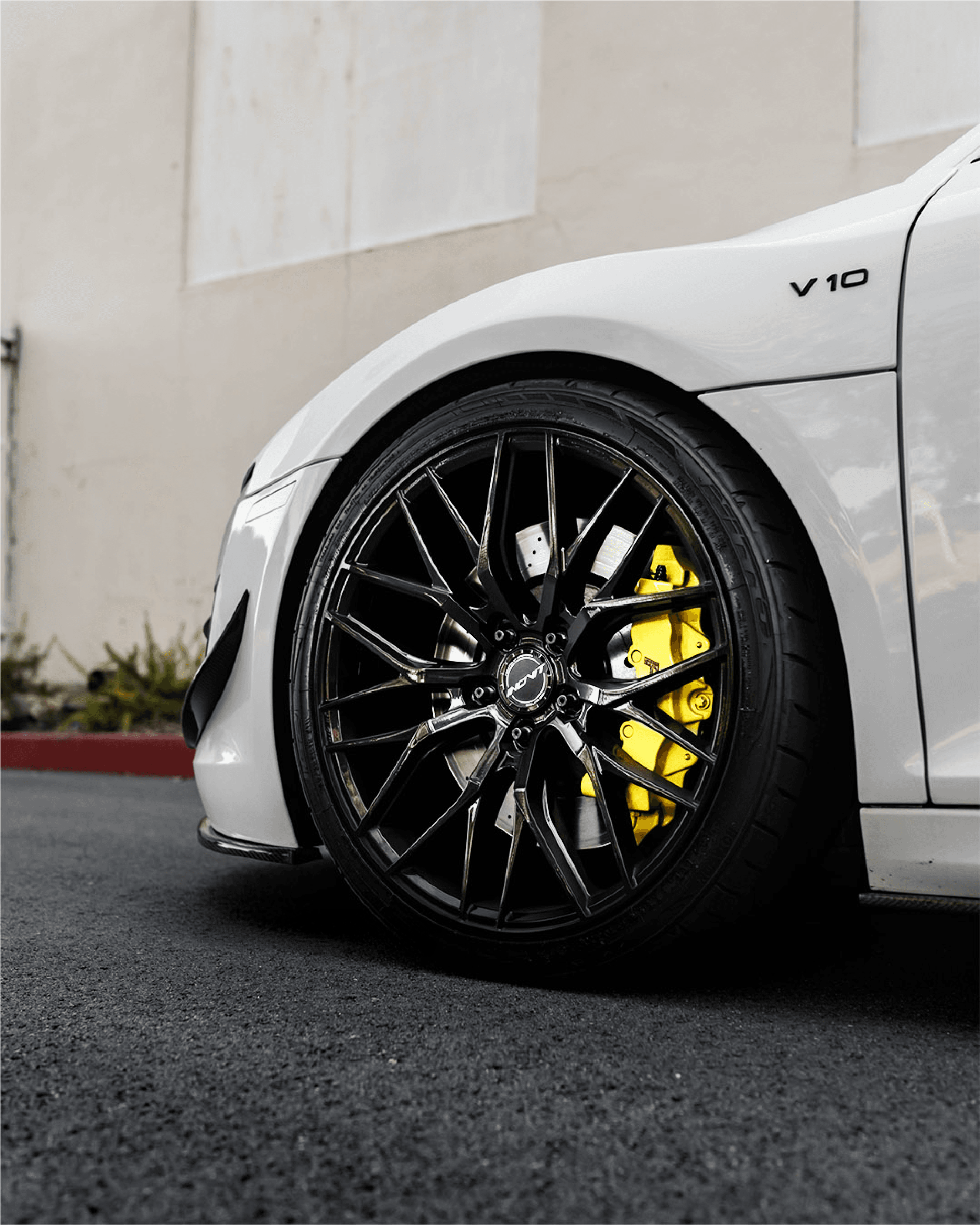

In the wild.
